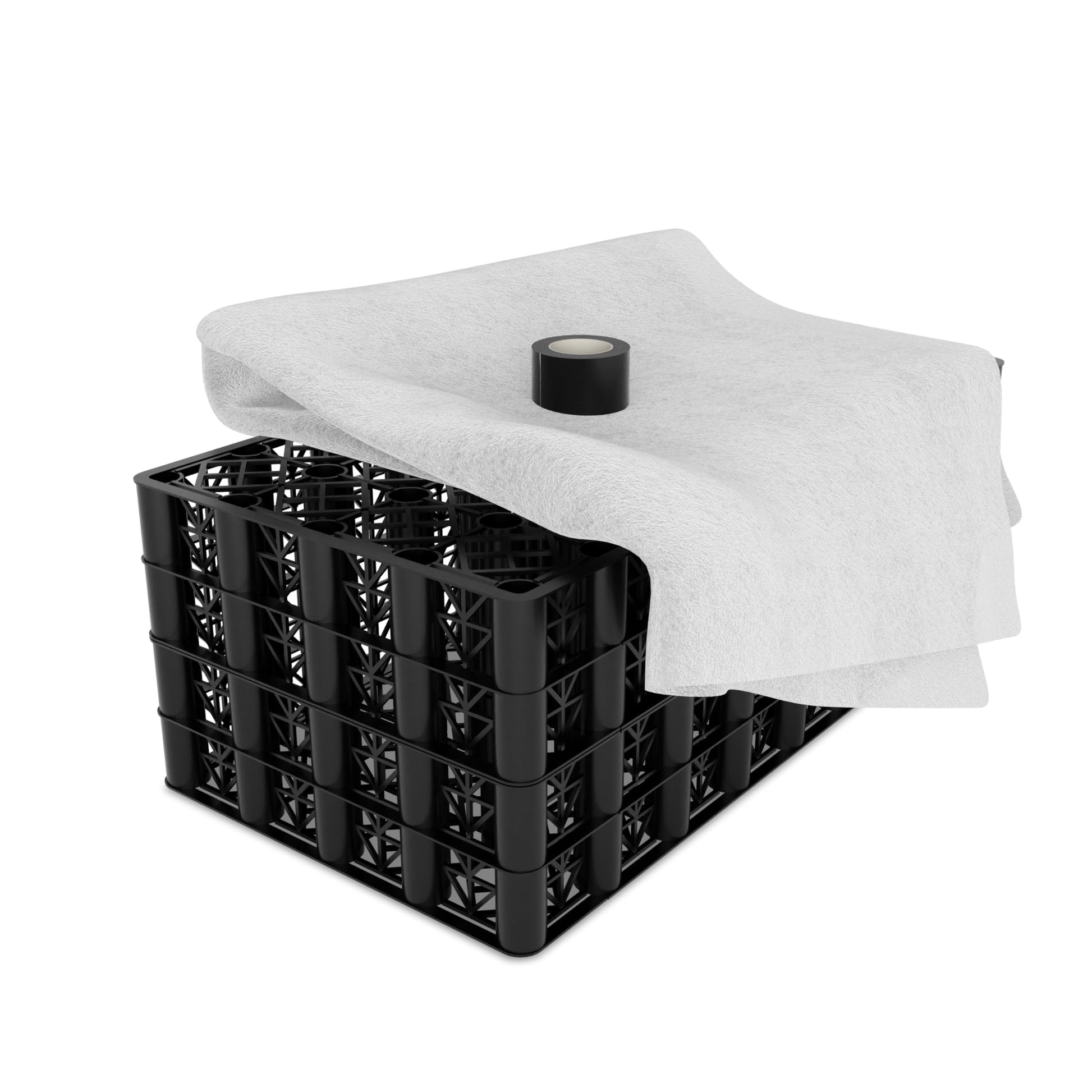

Polystorm Soakaway Kit PSM1A Crate + Spudulica Geotextile Membrane + EcoGrid Joining Tape (760L)

Brand: Polystorm

Color: Black

Features:

• 3D flow throughout with integrated inlet & outlet. Strong sturdy Crates supplied with fabric to cover or wrap your tanking kit. Geo Tape also supplied to secure together.
• 61 tonnes/m2 compressive strength with a lightweight design. Suitable for water retention, attenuation and infiltration applications. Stop water pooling in one easy step.
• 190L crates supplied if multiples/ larger amounts ordered e.g 760L kit connectors also supplied. Dimensions: 1000mm x 500mm x 400mm Weight: 9kg (approx) Capacity 190L.
• No need to use rubble to create a lonterm drainage solution. Creates a reservoir within the ground to store water away from the surface and allow it to drain away into the soil slowly.
• Landscape membrane supplied with fabric tape to create a heavy duty barrier from debris. Allowing the creates to abosrb the water but not the spoil particles.

model number: soakkit

Part Number: 2

Details: Product description

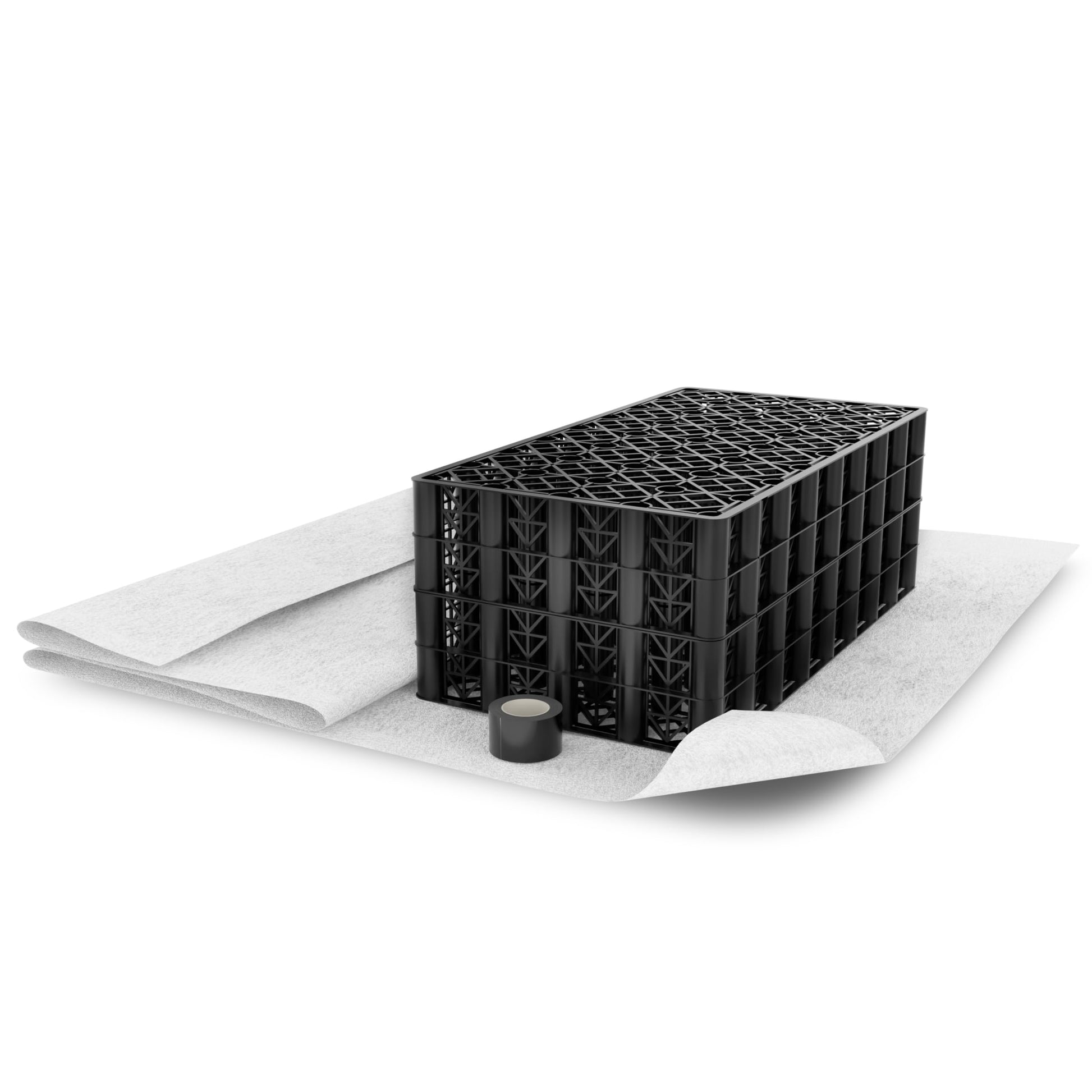

Soakaway Kit - Polystorm PSM1A Crate + Spudulica Geotextile Membrane + EcoGrid Joining Tape

A soakaway drainage solution consisting of anti-flooding storm crates with a suitable amount of Spudulica geotextile membrane and EcoGrid joining tape. Enabling surface water to be soaked down into the crates at a fast rate, then further dissipates the gathered water into the lower ground clearing water quickly from the surface.

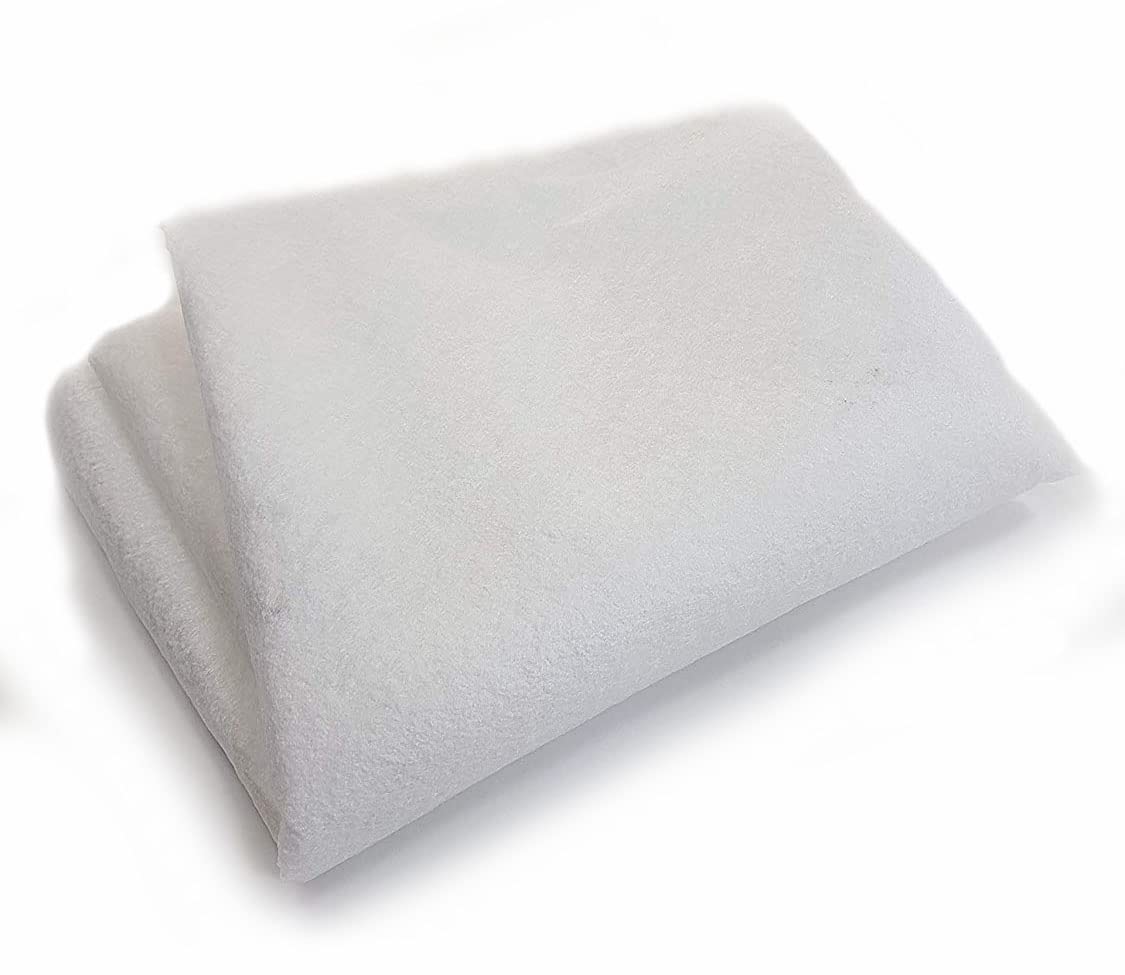

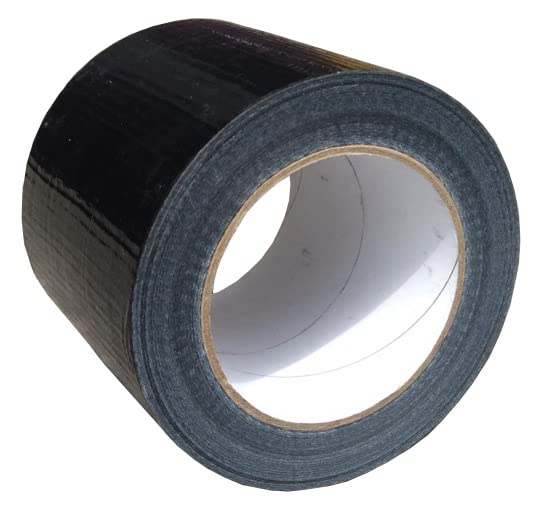

Pack Contains: Polystorm PSM1A Crate, 100gsm Geotextile Membrane + Joining Tape To Suit
Capacities Available: 190L, 380L, 760L, 1140L, 1520L, 1900L & 2280L

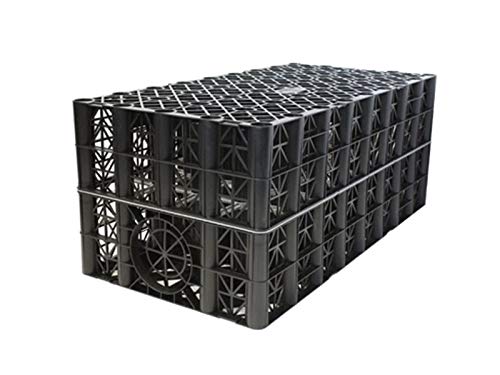

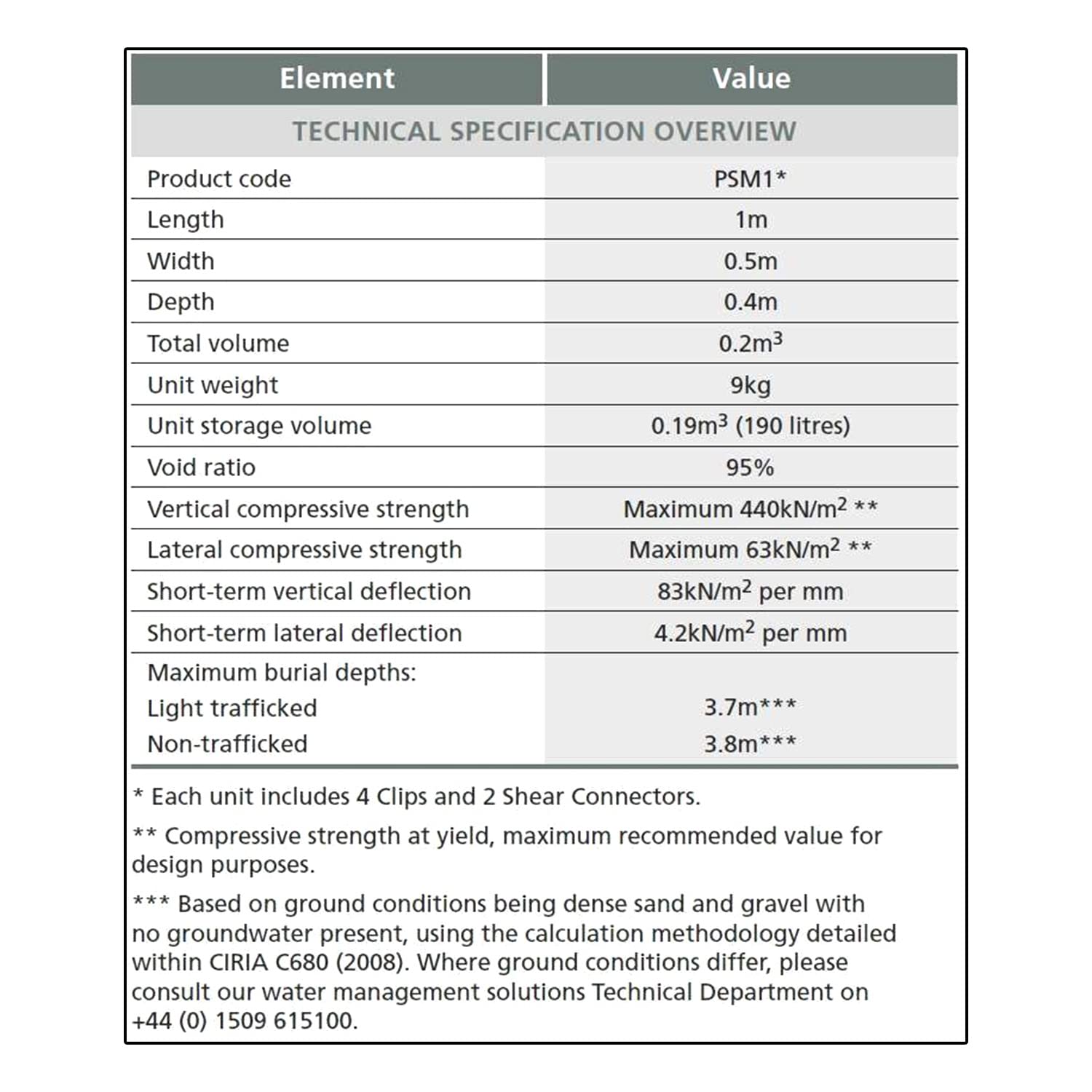

Crate Dimensions: 1000mm x 500mm x 400mm
Crate Storage Volume: 190L
Crate Weight: 9kg (approx)

Key Features:
- 3D flow throughout with integrated inlet & outlet
- 61 tonnes/m2 compressive strength with a lightweight design

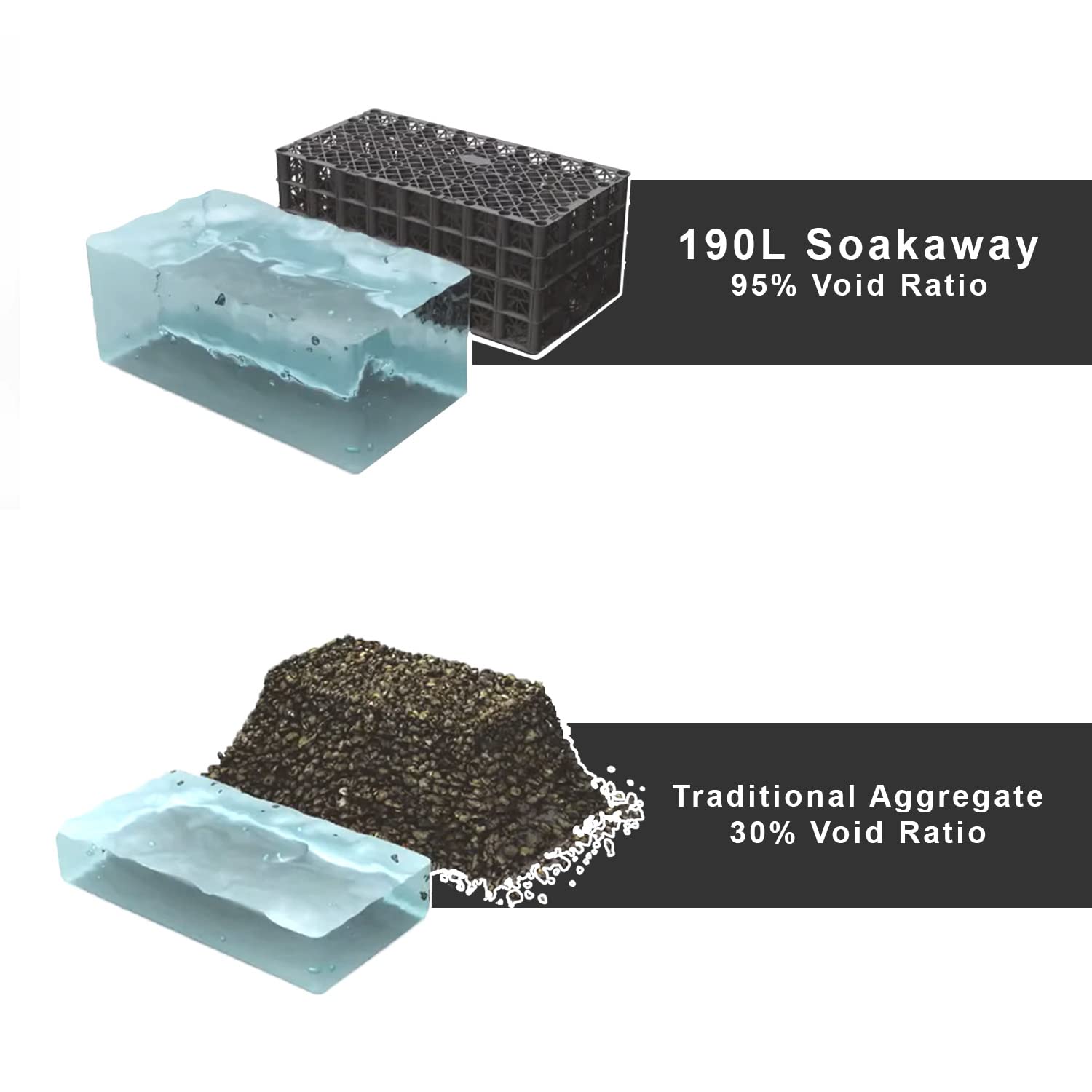

- 60 years creep limited life expectancy, 95% void ratio & BBA approved

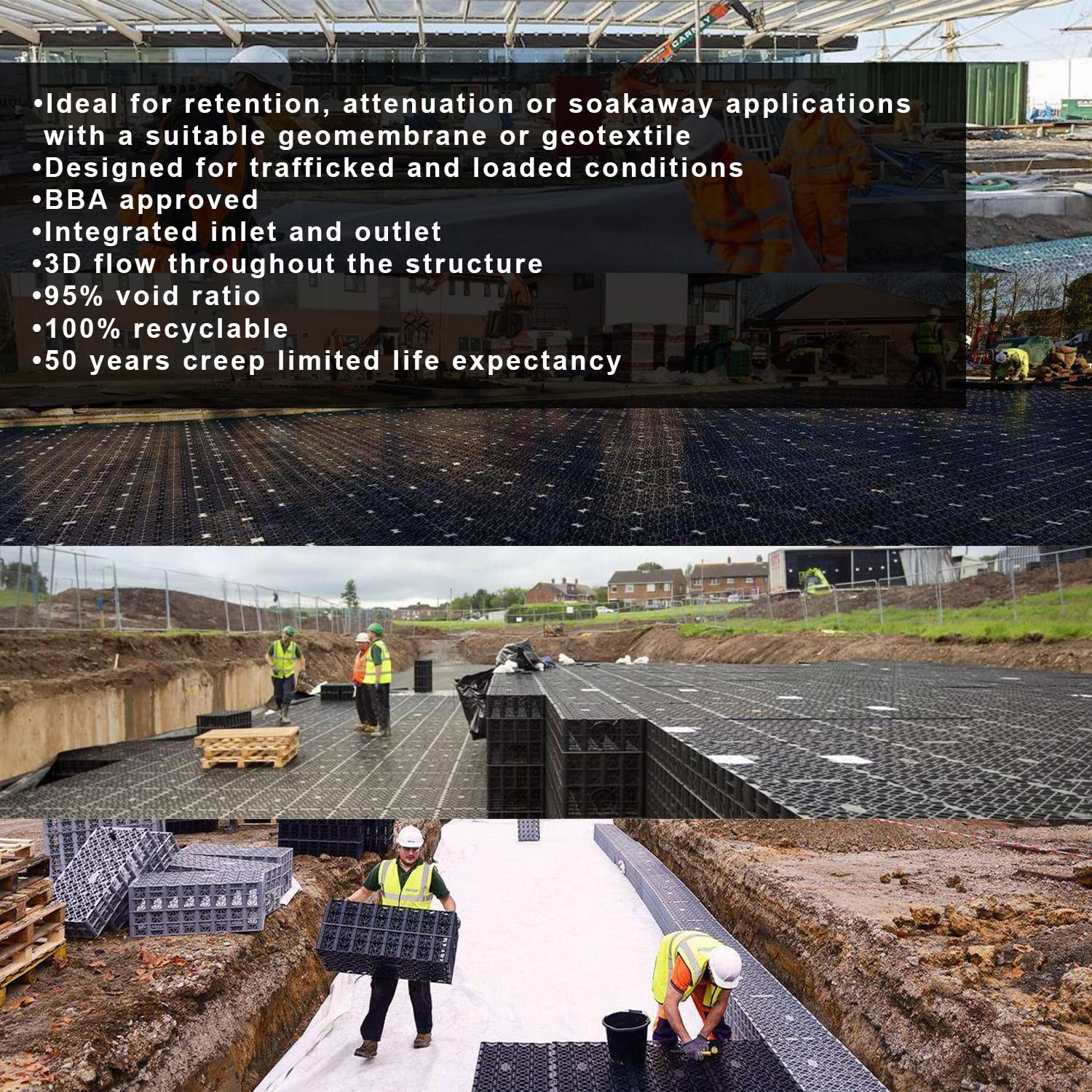

- Suitable for water retention, attenuation and infiltration applications
- Undergone rigorous testing to ensure product performance for a sustainable solution
- Environmentally friendly, made from specially selected & controlled recycled materials Please note geotextile is sized for the kit – For all crates to be connected together in their smallest configuration. Longest sides together then stacked. Geotextile is calculated for 190L crates in the smallest size at a 2.25m width and linear length piece. If crates are separated then geotextile may not be enough.

Legal Disclaimer

All larger capacity packages are multiples of the 190L crate with connectors e.g 380l 2x crates, 760l 4 crates etc etc Each 190L crate is 1000mmx500mmx400mm approx 9kg each in weight. Please note multiple crates can be connected and will be larger/heavier.

EAN: 5060548912185

Package Dimensions: 59.1 x 39.4 x 31.5 inches
